Effective Column Marking Techniques for Construction Projects

Accurate column marking plays a crucial role in the success of any construction project. When columns are marked correctly, the entire structure aligns as planned, reducing costly errors and delays. For quantity surveyors, MEP engineers, civil engineers, construction managers, and architects, understanding the best practices for column marking ensures smooth coordination and quality control on site.

This post explores practical column marking techniques, common challenges, and tips to improve accuracy. Whether you are setting out columns for a residential building or a complex commercial structure, these insights will help you deliver precise results.

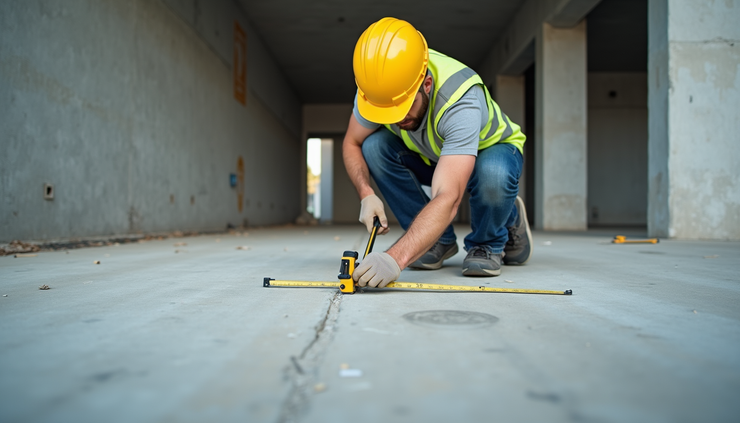

Worker marking column positions on site

Worker marking column positions on site with measuring tools

Why Accurate Column Marking Matters

Columns are the backbone of any building. They carry loads from slabs and beams down to the foundation. If columns are misplaced, it can cause structural weaknesses, misalignment of walls, and clashes with other building elements like pipes and ducts.

For quantity surveyors, incorrect column locations can lead to inaccurate material takeoffs and cost estimates. MEP engineers may face difficulties routing services around columns that are not where they should be. Architects and construction managers rely on precise column placement to maintain design integrity and schedule.

Mistakes in column marking often lead to rework, which wastes time and money. Getting it right the first time reduces risks and keeps the project on track.

Preparing for Column Marking

Before marking columns on site, thorough preparation is essential. This includes:

• Reviewing drawings carefully: Check architectural, structural, and MEP drawings for column locations and dimensions. Confirm any changes or revisions.

• Coordinating with all teams: Discuss column positions with engineers and architects to avoid conflicts with other elements.

• Setting out control points: Establish fixed reference points on the site, such as grid lines or benchmarks, to guide measurements.

• Gathering tools: Use reliable measuring tapes, theodolites, laser levels, chalk lines, and markers.




Preparation reduces errors and ensures everyone understands the plan.

Step-by-Step Column Marking Process

Here is a practical approach to marking columns accurately:

1. Establish grid lines: Use the site’s control points to mark the main grid lines on the floor slab or foundation. These lines represent the column axes.

2. Measure column positions: From the grid lines, measure the exact distances to the column edges or centers as specified in the drawings.

3. Mark column outlines: Use chalk or paint to draw the column footprint on the slab or foundation. Include dimensions and labels for clarity.

4. Double-check measurements: Verify all distances and angles with a second person or by re-measuring to avoid mistakes.

5. Record markings: Take photos or notes of the marked columns for documentation and future reference.

6. Communicate with the team: Inform supervisors, engineers, and workers about the marked columns before starting formwork or reinforcement.




Following these steps helps maintain accuracy and accountability.

Common Challenges and How to Overcome Them

Even with careful planning, column marking can face obstacles:

• Uneven or rough surfaces: Slabs or foundations may not be perfectly flat, making it hard to mark straight lines. Use laser levels to establish horizontal planes.

• Confusing drawings: Sometimes drawings lack clarity or have conflicting information. Clarify doubts with the design team before marking.

• Human error: Fatigue or distractions can cause mistakes. Use checklists and involve multiple people to cross-check work.

• Site conditions: Weather, lighting, and space constraints affect visibility and access. Plan marking activities during favorable conditions and use portable lighting if needed.




Addressing these challenges improves the reliability of column markings.

Tips for Improving Column Marking Accuracy

To enhance precision and efficiency, consider these tips:

• Use digital measuring tools: Laser distance meters and total stations speed up measurements and reduce errors.

• Mark centerlines instead of edges: Centerlines provide a clear reference for column placement and alignment.

• Label markings clearly: Include grid references and column numbers to avoid confusion.

• Train workers: Regular training on marking techniques and tools builds skill and confidence.

• Maintain communication: Keep all teams informed about marking progress and changes.

• Document everything: Photos, sketches, and reports help track work and resolve disputes.




These practices support consistent and high-quality column marking.

Impact of Accurate Column Marking on Project Success

Accurate column marking benefits the entire construction process:

• Structural integrity: Columns are placed exactly where designed, ensuring load paths work as intended.

• Reduced rework: Fewer mistakes mean less time spent fixing errors.

• Better coordination: MEP installations and architectural elements fit smoothly around columns.

• Cost control: Quantity surveyors can prepare precise estimates and avoid material waste.

• Schedule adherence: Work flows without delays caused by column-related issues.




In short, precise column marking lays the foundation for a successful build.
